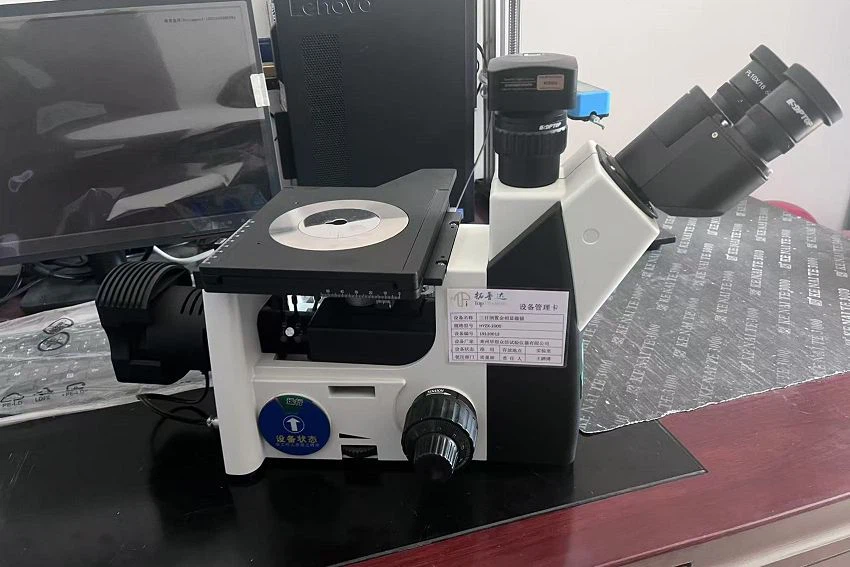

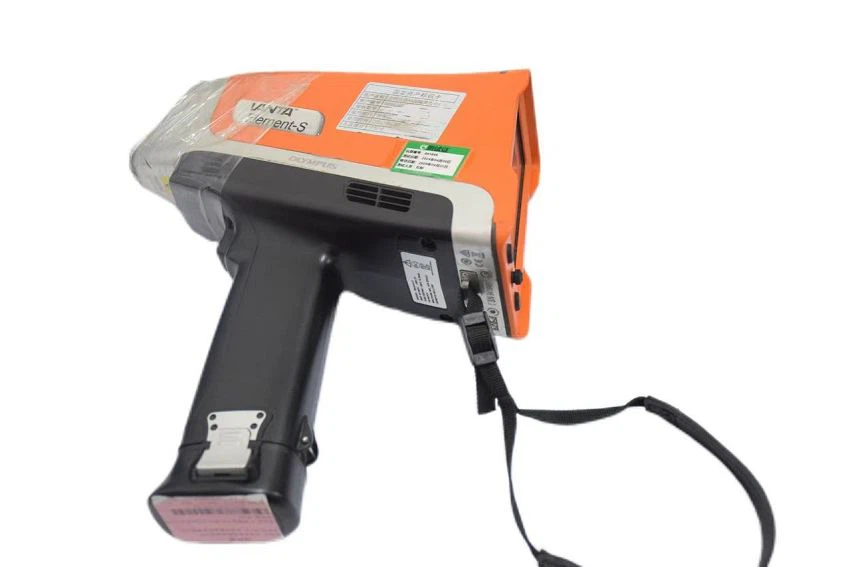

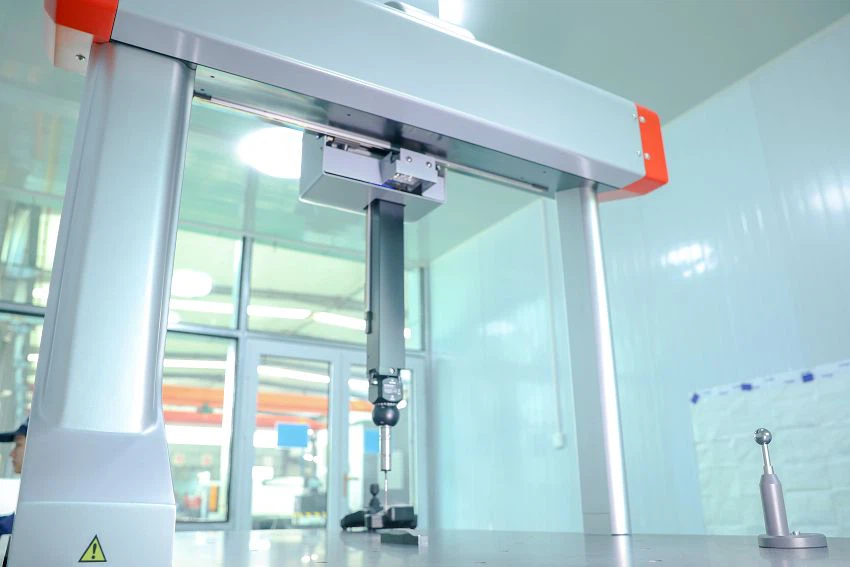

We adhere to strict quality control standards throughout our manufacturing process. All our titanium products undergo rigorous testing, including chemical composition analysis, mechanical property testing, and non-destructive testing, to ensure they meet international standards and customer specifications.
Yes, we understand that different applications require specific dimensions and purities. We offer custom manufacturing for both titanium wire and target materials to meet your precise requirements, including various diameters, lengths, and material compositions.
Our titanium anodes and titanium substrates are highly valued for their superior corrosion resistance, excellent electrical conductivity, and long service life. They are commonly used in electroplating, water treatment, chlor-alkali production, and cathodic protection systems, providing reliable performance in harsh environments.
Titanium rods are typically solid forms of titanium, used for general machining, structural components, and fasteners. Titanium powder rods, on the other hand, are made from compacted titanium powder, often used in additive manufacturing (3D printing) or specialized applications requiring specific microstructures or properties.
What factors should be considered during the design, installation, and maintenance of an ICCP system?
Effective design, careful installation, and diligent maintenance are crucial for the optimal performance and longevity of an ICCP system. Several factors must be taken into account:
Design Considerations:
Structure Characteristics: Size, material, coating condition, and geometry of the structure to be protected.
Environmental Conditions: Resistivity of soil or water, temperature, oxygen availability, and presence of other corrosive agents.
Current Requirements: Calculation of the total current needed to achieve adequate protection potential across the entire structure.
Anode Selection and Placement: Type, quantity, and strategic placement of anodes to ensure uniform current distribution.
Power Source: Selection of an appropriate DC rectifier with sufficient capacity and control features.
Interference: Assessment and mitigation of potential interference with other metallic structures or utilities.
Maintenance Considerations:
Regular Monitoring: Periodic measurement of structure-to-electrolyte potentials using reference electrodes to ensure adequate protection levels.
Rectifier Inspection: Routine checks of rectifier output voltage and current, and inspection for damage or malfunction.
Anode Bed Inspection: Occasional inspection of anode beds for damage or consumption, though inert anodes are designed for long life.
Cable and Connection Integrity: Verification of all electrical connections and cables for damage or degradation.
Troubleshooting: Prompt identification and resolution of any issues that may compromise the system's effectiveness.
This manual provides guidance and requirements for the selection, design, installation, operation, and maintenance of CPS for civil works structures.[10]
What are the key benefits of choosing an Impressed Current Cathodic Protection system over other corrosion prevention methods?
ICCP systems offer several significant advantages, making them a preferred choice for many large-scale and long-term corrosion protection projects:
Adjustable Protection: The output current can be precisely controlled and adjusted to meet varying protection requirements, adapting to changes in environmental conditions or structure size.
Long Lifespan: With proper design and maintenance, ICCP systems can provide protection for decades, often exceeding the lifespan of sacrificial anode systems [8].
Suitable for Large Structures: They are highly effective for protecting large and complex metallic structures where sacrificial anodes might be impractical or insufficient.
Lower Operating Costs (Long-term): While initial installation costs might be higher, the longer lifespan and lower maintenance frequency can result in lower overall operating costs compared to frequent replacement of sacrificial anodes.
Remote Monitoring: Many modern ICCP systems can be equipped with remote monitoring capabilities, allowing for real-time performance tracking and early detection of issues.
Environmental Friendliness: Compared to some other methods, ICCP systems generally have a lower environmental impact, as they do not consume large quantities of active metals.
Cathodic protection (CP) systems help minimize the risk of pipeline leaks and damage by providing protection from potential corrosion issues.[9]
Where are Impressed Current Cathodic Protection systems commonly applied?
ICCP systems are highly versatile and are employed across various industries to protect a wide range of metallic structures exposed to corrosive environments, particularly in soil or submerged in water. Their ability to provide adjustable and long-term protection makes them ideal for large and critical infrastructure.
Common Applications Include:
Pipelines: Protecting buried oil, gas, and water pipelines from external corrosion [6].
Marine Structures: Safeguarding ships' hulls, offshore platforms, jetties, and subsea pipelines in seawater environments.
Storage Tanks: Preventing corrosion in the external bottoms of above-ground storage tanks and the internal surfaces of water storage tanks.
Reinforced Concrete Structures: Protecting steel rebar in concrete bridges, parking garages, and buildings from chloride-induced corrosion.
Power Plants: Protecting cooling water intake structures and other submerged components.
Industrial Facilities: Various metallic structures within chemical plants, refineries, and other industrial settings.
Impressed current systems (ICS) are defined as cathodic protection systems used in applications with high power demands, such as large water storage tanks, offshore platforms, and pipelines.[7]
Can you explain the working principle of an ICCP system in detail?
An ICCP system operates on the principle of electrochemistry to halt the corrosion process. Corrosion typically occurs when a metal acts as an anode in the presence of an electrolyte (like soil or water) and an electron acceptor (like oxygen), leading to the metal's oxidation and degradation.
An ICCP system introduces an external power source, usually a DC rectifier, which supplies a direct current to a series of inert anodes (often made of mixed metal oxides, graphite, or high-silicon cast iron) buried in the electrolyte or positioned near the structure. This current flows from the anodes, through the electrolyte, and onto the surface of the metallic structure to be protected. By receiving this flow of electrons, the entire surface of the protected structure becomes cathodic, preventing the metal from losing electrons and thus stopping the corrosion process [4].
Key Components of an ICCP System:
| Component | Function |
|---|---|
| DC Rectifier | Converts AC power to DC power, providing the necessary current and voltage for protection. |
| Anodes | Inert electrodes (e.g., MMO, graphite) that discharge current into the electrolyte. |
| Reference Electrode | Measures the potential of the protected structure relative to a stable reference, ensuring adequate protection. |
| Cables & Wiring | Connects the rectifier to the anodes and the structure, facilitating current flow. |
| Junction Boxes | Provides connection points and allows for testing and monitoring of the system. | An ICCP system continuously monitors the level of protection and adapts to the current required to stop corrosion.[5]Data Support:
References:
What is an Impressed Current Cathodic Protection (ICCP) system, and how does it prevent corrosion?
An Impressed Current Cathodic Protection (ICCP) system, also known as a Cathodic IPS system, is an advanced electrochemical technique used to prevent the corrosion of metallic structures. It works by supplying a controlled external direct current to the metal structure, effectively making it the cathode of an electrochemical cell. This process suppresses the naturally occurring anodic (corrosive) currents on the metal surface, thereby mitigating corrosion [1].
Unlike sacrificial cathodic protection systems that rely on more active metals to corrode, ICCP systems use an external power source (rectifier) to drive current through inert anodes, forcing the protected structure to remain cathodic [2]. This ensures continuous and adjustable protection, particularly for large or complex structures.
ICCP is an electrochemical process used to prevent corrosion in metal structures by applying a controlled electrical current to the metal.[3]
How to properly use and maintain titanium anodes to extend their lifespan and ensure the stability of electrochemical processes?
Correct operation and regular maintenance are key to extending the lifespan of titanium anodes. Here are some important precautions:
Avoid mechanical damage: The surface coating of titanium anodes is thin and fragile; avoid scratching or impacting with hard objects to prevent coating detachment.
Control current density: Operate within the recommended current density range; excessively high current density may accelerate coating wear.
Keep electrolyte clean: Avoid impurities in the electrolyte that may contaminate the anode surface or lead to coating poisoning.
Regular cleaning: Depending on usage, regularly remove deposits from the anode surface, but avoid using strong corrosive cleaners or mechanical brushing.
Polarity reversal (in some cases): In some applications, regular polarity reversal helps remove anode surface fouling, but it should be done cautiously according to anode type and process requirements.
Storage conditions: Titanium anodes not in use for a long time should be cleaned and stored in a dry, ventilated environment.
The distance between the cathode and anode poles should be adjusted appropriately, typically ranging from 5 to 25 mm.
[1] Hele Titanium. (2023). Titanium Anode Industry 2023: Your Complete Purchase Guide. Retrieved from [https://heletitanium.com/titanium-anode-industry-2023-a-complete-purchasing-guide/](https://heletitanium.com/titanium-anode-industry-2023-a-complete-purchasing-guide/)
[2] Corrosionpedia. (2019). 6 Things You Need to Know About Platinized Titanium Anodes. Retrieved from [https://www.corrosionpedia.com/6-things-you-need-to-know-about-platinized-titanium-anodes/2/6952](https://www.corrosionpedia.com/6-things-you-need-to-know-about-platinized-titanium-anodes/2/6952)
[3] Deyuan Metal. (2024). Five Common FAQs About Impressed Current Anodes. Retrieved from [https://www.deyuanmetal.com/news/five-common-faqs-about-impressed-current-anode-80957130.html](https://www.deyuanmetal.com/news/five-common-faqs-about-impressed-current-anode-80957130.html)
[4] Qixin Titanium. (2025). Factors to Consider When Selecting a Titanium Anode. Retrieved from [https://www.qixintitanium.com/info/factors-to-consider-when-selecting-a-titanium-103162025.html](https://www.qixintitanium.com/info/factors-to-consider-when-selecting-a-titanium-103162025.html)
[5] Toptitech. (2022). Proper use and maintenance of titanium anode. Retrieved from [https://www.toptitech.com/info/proper-use-and-maintenance-of-titanium-anode-73213019.html](https://www.toptitech.com/info/proper-use-and-maintenance-of-titanium-anode-73213019.html)

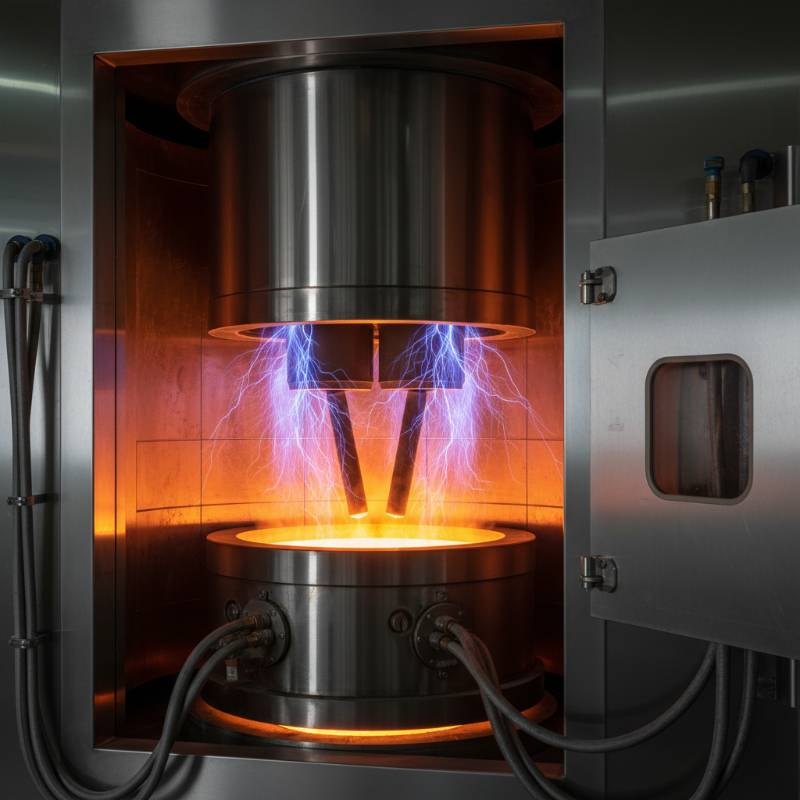

Explore the complete production process of titanium products, from ore extraction to finished goods. This includes key stages like the Kroll Process, Vacuum Arc Remelting, Electron Beam Cold Hearth Remelting, forging, casting, and heat treatment, revealing the complexity and technical essentials of titanium manufacturing.

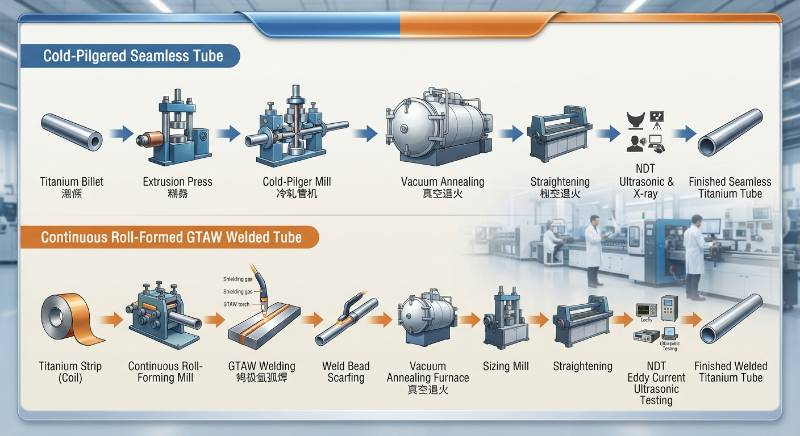

Explore the comprehensive guide to titanium tubes, covering their unique properties, diverse applications in aerospace, medical, and marine industries, manufacturing processes, and selection criteria for engineers and procurement specialists globally.

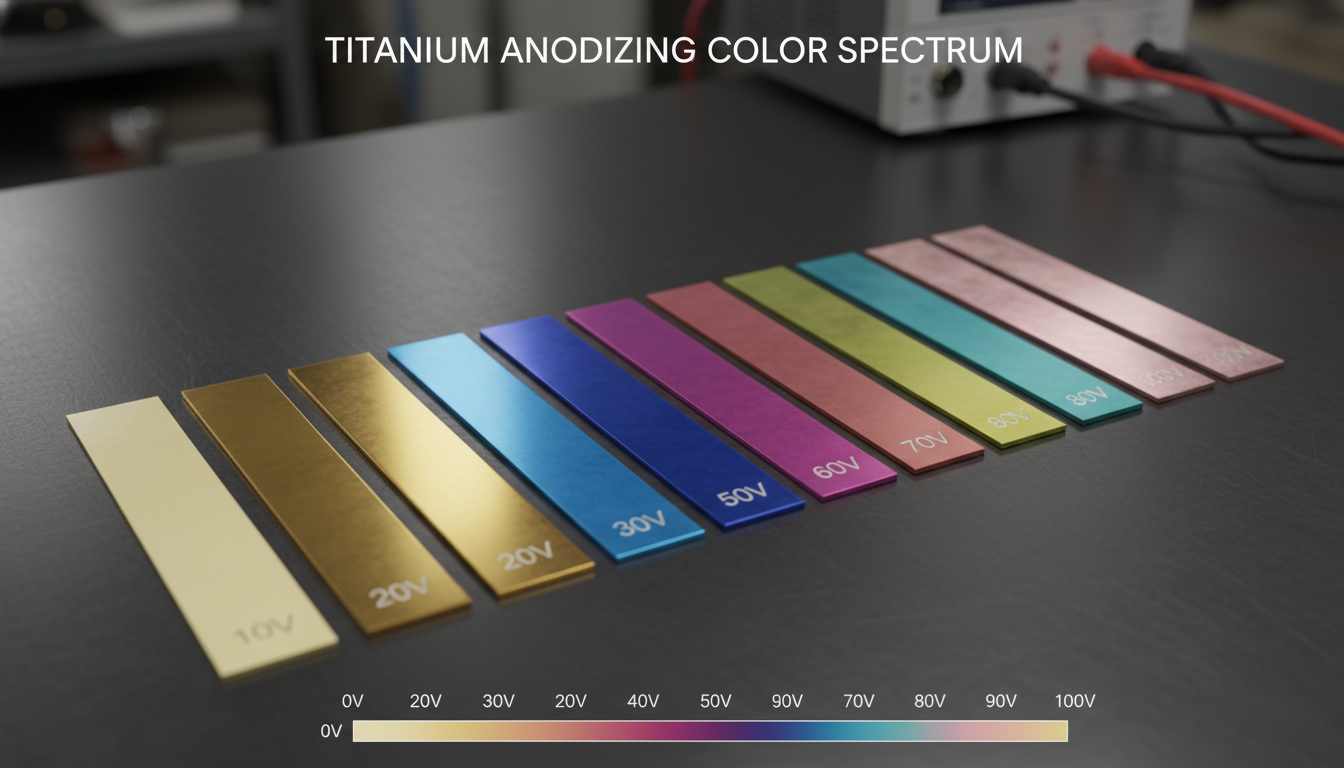

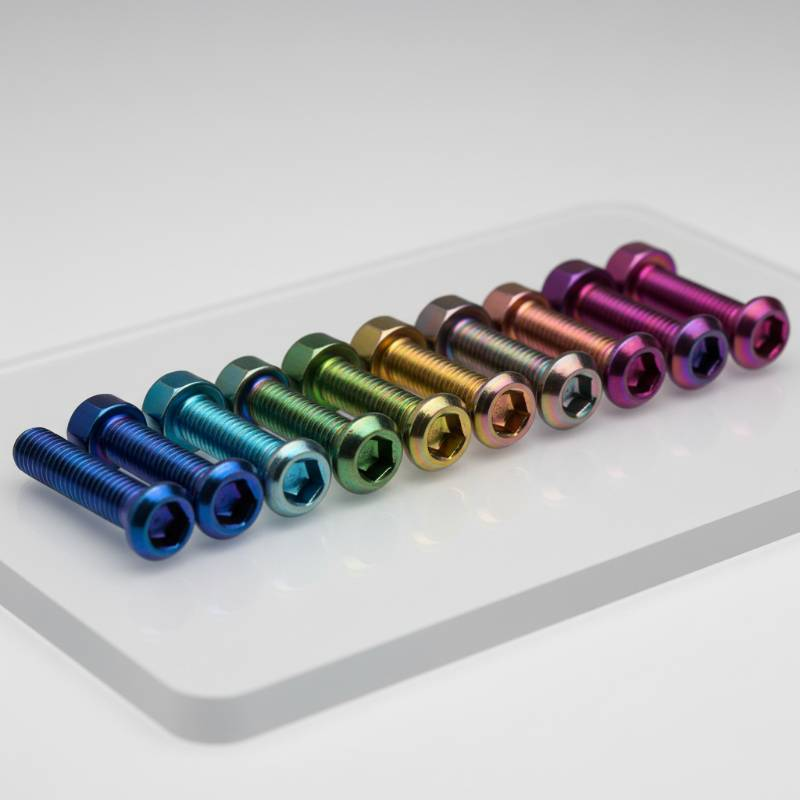

Explore the fascinating world of titanium metal colors, from its natural appearance to vibrant anodized hues. Discover how titanium's unique properties create a spectrum of possibilities for various industries.
